E C H O S M A R T 791 |
 |
|
Техническа информация за

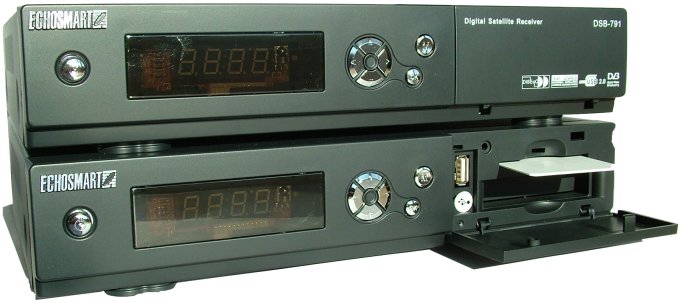

ECHOSMART DSB-791 (CAS MODULE + EMULATOR +
USB2.0 PVR) • Hardware blind search supported(No need frequency and symbol rate). • RGB output supported. • USB2.0 interface • Support MP3,JPG image and photo display • External USB hard disk, U disk or pc recoding programs supported. ts stream recoding supported. • Fully DVB-S / MPEG ¨C2 compliant. • 5000 channels memory space • SCPC & MCPC receivable from C/Ku band satellites • 256-color on screen display (OSD). • Video Outputs Support for all NTSC, PAL B/G,I,D/K,N, M, SECAM worldwide standards, and Macrovision copy protection supported • DiSEqC 1.0/1.1/1.2/1.3(USALS) supported • Multi-language OSD (Hungary, English, German, Italian, Spanish, French, Turkish, Arabic, Persian, Greek, Portuguese, Russian, Polish etc.). • Multi-language audio and subtitle reception • Electronic program guide (EPG) supported • Teletext and close caption output through VBI and OSD • RF modulator for TV standard (PAL B/G/D/I/K/N/M, NTSC, SECAM) • Two Scart sockets • Digital encoded bit-stream output via S/PDIFˇ¤ Dolby port • Picture in graphics (PIG) supported • NIT search supported • Automatic search & blind-search(HW) for satellites and transponders • Upgrade software from PC to receiver, or from receiver to receiver through RS-232 port • Timer function supported • 4:3, 16:9 aspect ratio support through pan/scan or letter-boxing • Games included • Picture in picture (4, 6, 9, 16 PIP available) function • Easy-Installation Menu • Arabic teletext supported TUNER Input Frequency: 950~2150MHz Loop Out Frequency: 950~2150 MHz Input Level: -65~-25 dBm Input Impedance: 75 LNB Power :Auto/14V/18V/OFF, Imax = 500mA CHANNEL DECODING Waveform: QPSK Roll Off Factor: 0.35 FEC: 1/2, 2/3, 3/4, 5/6, 7/8, Automatic Reed Solomon: 204, 188, t = 8 Symbol Rate: 1.0~45 MS/s DEMULTIPLEXER Standard: ISO/IEC 13818-1 Input Max. Bit Stream Rate: 60Mbps(Serial)/7.5MBps(Parallel) VIDEO DECODING Standard: ISO/IEC 13818-2, MPEG-2 MP@ML Aspect Ratio: 4:3, 16:9 Video Resolution:Max. 720x480 @30fps NTSC & 720x576 @25fps PAL AUDIO DECODING Standard:ISO/IEC 13818-3 Audio Channel:Mono, Dual-channel, Stereo, and Joint Stereo Sampling rates: 16, 22.05, 24, 32, 44.1, 48kHz PROCESSOR AND MEMORY CPU: CX24303 Clock Frequency:150MHz Flash Memory: 2M bytes SDRAM Memory: 16M bytes AV OUTPUT Video De-emphasis:CCIR REC.405-1, 625LINES Video Bandwidth: 5.5MHz Video Output Impedance: 75 Video Output Level: 1.0Vp-p Audio Output:Mono, Left/Right Stereo Audio Output Frequency:20Hz~ 20KHz Audio Output Impedance:Low Audio Output Level:0 6dBu FRONT PANEL LED Display:4-digit LED to indicate channel number and status Keys:Up, Down, Left, Right, Menu, OK IR Receiver: 38KHz Smart card reader: 1 REAR PANEL RF Input:F-type,connector Loop Through Output:F-type,connector RCA Output:4RCA(1 Left Audio,1 Right Audio,1 Video, 0/12V) RS232 Serial Port:DB-9 Male, 11.52Kbps SCART: 2(VCR,TV) (optional) Digital Audio Output:: S/P DIF Fiber-optical RCU Category:IR(Carrier 38KHz) Battery:2x1.5V AAA POWER Input Voltage:AC100~240V 10%, 50/60Hz Power Consumption:30Wmax AMBIENT Operation Temperature: 0~40 Size:252mm(W) x 200mm(D) x 52mm(H) Weight:1.5Kg |
|
|
